Electric UPVC Ball Valve with Mini Smart Actuator, Remote/Local Control Switching, Corrosion-Resistant, Visual Flow Indication

Product Categories
Wuhan Grat Control Valve Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Electric UPVC Ball Valve with Mini Smart Actuator, Remote/Local Control Switching, Corrosion-Resistant, Visual Flow Indication

Modulation Accuracy : Less Than 0.3%

Duty Cycle : 100% ED (Continuous)

Place of Origin : China

MOQ : 1

Certification : CE, RoHS, SIL

Valve Materal : SS304/316

Hysteresis : <0.5%

Model Number : EV-25

Price : 1

Supply Ability : 1000

Driving Mode : Electric

Payment Terms : T/T

Media Temperature : 0-120℃

Brand Name : GRAT

Mounting Type : Direct Mount / Flange Mount

Media : Water / Glycol

Operating Temperature : -20°C to +60°C

Contact Now

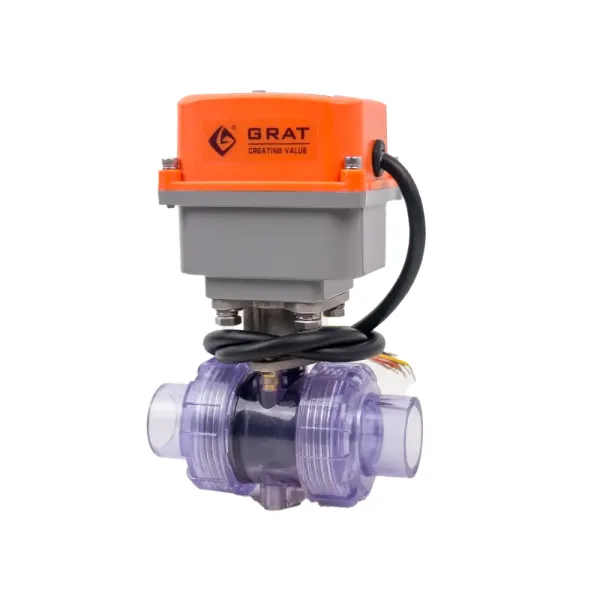

Electric UPVC Ball Valve with Mini Smart Actuator
Remote/Local Control Switching, Corrosion-Resistant, Visual Flow Indication
Transparent UPVC Electric Valve Overview
The Transparent UPVC Electric Valve enables real-time flow monitoring for water treatment, food processing, and industrial applications. Operators can detect issues without disassembly, saving maintenance time and reducing operational disruptions.
Electric UPVC Ball Valve with Mini Smart Actuator, Remote/Local Control Switching, Corrosion-Resistant, Visual Flow Indication
Product Description
This versatile fluid control component combines unplasticized polyvinyl chloride (UPVC) with enhanced transparency for real-time visual monitoring. Ideal for water treatment plants, pharmaceutical production, and food processing where process visibility is critical.
Electric UPVC Ball Valve with Mini Smart Actuator, Remote/Local Control Switching, Corrosion-Resistant, Visual Flow Indication
Key Features
  • Low power consumption: Only 10W power requirement for energy-efficient operation
  • Smooth speed regulation: PWM stepless speed regulation ensures stable actuator operation
  • High-performance motor: Built-in brushless motor with overload protection for reliability and long service life
  • Real-time parameter display: OLED screen displays status and parameters in Chinese or English with fault alarms
  • Precise control: Wide adjustable range (30% to 100%) with 0.5% control accuracy
  • Multiple feedback methods: Supports 4-20mA, 0-10V, and 1-5V feedback for accurate control
Technical Specifications
ParameterSpecification
Nominal Bore (DN)DN15～DN40
Operating VoltageAC220V, DC24V
Medium Temperature-15℃～60℃
Nominal PressurePN1.0～1.6MPa
Flow CharacteristicQuick opening
Connection TypeUnion, Flange
Valve Body MaterialsUPVC, CPVC, PVC
Valve Core MaterialsUPVC, CPVC, PVC
Ball Valve SealPTFE, PPL, etc.
Packing MaterialGraphite, PTFE
Actuator MaterialCast aluminum alloy
Design & ManufacturingGB12237-2007, API 6D
Product Inspection & TestingAPI 598
Compatible Media
  • Water
  • Acids
  • Alkalis
  • Food-grade fluids
  • Industrial waste liquids
  • Pharmaceutical process fluids
Circuit Wiring Diagrams
DC 24V Configuration:
Electric UPVC Ball Valve with Mini Smart Actuator, Remote/Local Control Switching, Corrosion-Resistant, Visual Flow Indication
AC 220V Configuration:
Electric UPVC Ball Valve with Mini Smart Actuator, Remote/Local Control Switching, Corrosion-Resistant, Visual Flow Indication Electric UPVC Ball Valve with Mini Smart Actuator, Remote/Local Control Switching, Corrosion-Resistant, Visual Flow Indication
Contact Us for GRAT IoT Selection Guide Now!
